HG Nonwoven Macinery is one well-known non woven fabric machine manufacturer in China, which specializes in manufacturing all types of PP/PET/PLA spun bond and melt blown non woven fabric making machine such as S/SS/SSS/SMS/SMMS/SSMMS include turn-key project service.

Send Inquiry

Product Description

What is Non woven fabric making machine?

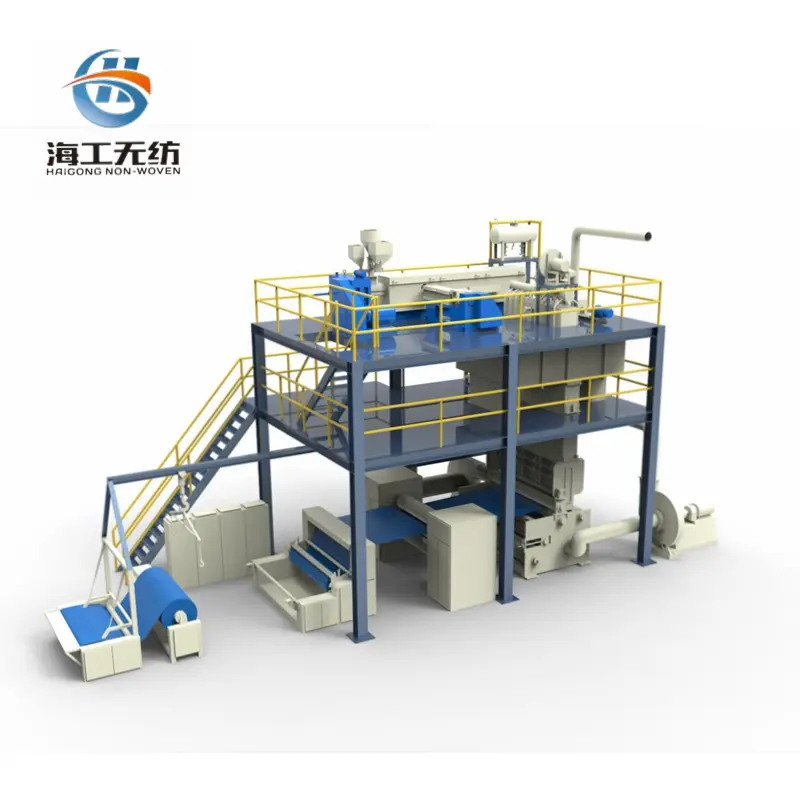

Spunbond nonwoven fabric making machine is a full production line of producing PP non-woven fabrics, which use polypropylene granules as raw material, adopts latest spunbond spinning technology to produce endless filaments.

The spunbond nonwoven machine is an integrated, continuous production line that transforms polymer granules like polypropylene directly into a fabric web. As the core equipment for manufacturing Spunbond Nonwoven Fabric (S), it is one of the most common types of nonwoven fabric making machines.

Single spinning head (S) nonwoven machine is characterized by its simplicity, cost-effectiveness, and high efficiency in producing a wide range of standard, single-layer spunbond nonwoven fabrics. It is the ideal solution for manufacturers targeting large-volume, price-sensitive markets where the functional requirements of the fabric can be met by a homogeneous structure.

PP Spunbond Nonwoven Fabric Machine Series

Models: HG-1600S / 2400S / 3200S

This series can produce the max width of 1600mm/2400mm/3200mm spunbond nonwoven fabric ranging from 10-200GSM.

Typical Applications

Agriculture: Crop covers, weed control fabric, plant protection.
Geotextiles: Soil stabilization, erosion control, drainage layers.
Packaging: Wrapping, shopping bags, durable goods covers.
Furniture & Bedding: Spring insulators, quilt backing, mattress.
Home Improvement: Housewrap, roofing base.

Key Characteristics of Spunbond Nonwoven Machine

Simplicity with lower Investment Risk: The machine layout is simpler and Ideal for small to medium-sized enterprises.

Lower Capital Cost: Significantly cheaper to purchase and install, making it the entry-point technology for many manufacturers.

Easier Operation and Maintenance: With only one spinning beam and drawing unit, the operational parameters are simpler to control.

High Production Efficiency: Designed for continuous, high-speed production, leading to high output and excellent uptime.

Good Uniformity: Advanced Spinning systems produce fabric with excellent cross-direction (CD) and machine-direction (MD) uniformity.

System Integration & Key Zones

1. Raw Material feeding & Extrusion System: PP chips & Additives (color masterbatch) are melted in the extruder using heated barrels and a rotating screw.

2. Melt Pump & Spinning Beam: Provides precise, constant pressure through the spinneret to form continuous molten polymer filaments.

3. Filament Quenching & Drawing System: Cool air solidifies filaments, which are then stretched by high-speed air jets to increase strength.

4. Web Formation & Suction Unit: Filaments are randomly scattered onto a moving belt. A suction unit helps ensure uniform, random web strength.

5. Thermal Bonding (Calender bonding): The web passes through heated steel rollers where filaments fuse together under heat and pressure.

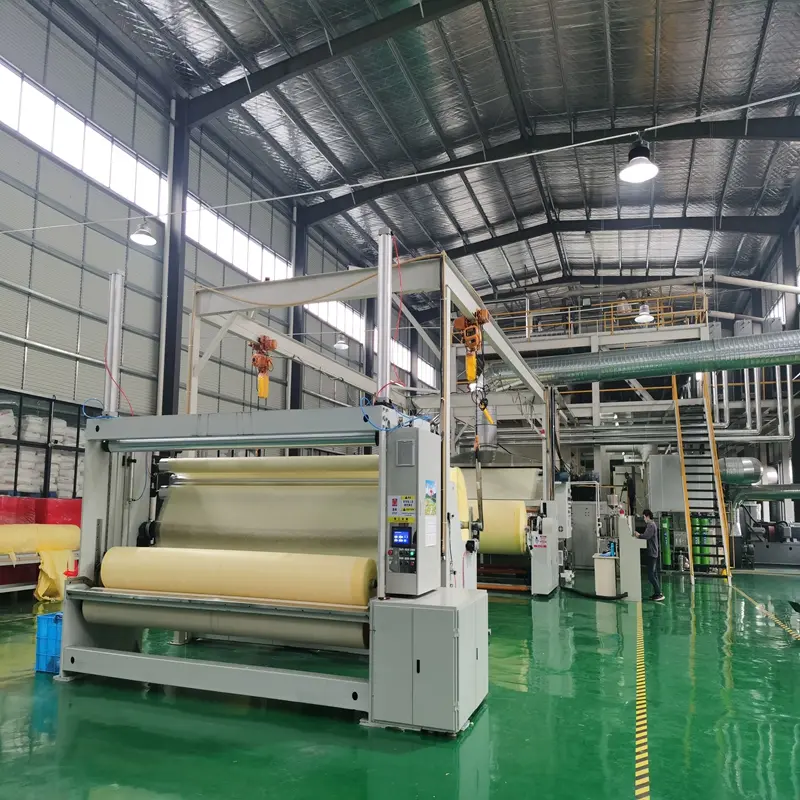

6. Winding & Slitter: Finished fabric is wound into jumbo rolls. An inline slitter trims edges and can slit the web into narrower rolls.

Technical Specifications

Custom configurations are available upon request.

Model	HG-1600S	HG-2400S	HG-3200S
Production capacity (kgs)	40,000kgs	60,000kgs	100,000kgs
Power Consumption(kW)	250kW	350kW	450kW
Machine Width(mm)	1600mm	2400mm	3200mm
Max. Production Speed (m/min)	200m	200m	200m
Fabric Thickness (GSM)	10-200 g/m²	10-200 g/m²	10-200 g/m²
Dimension (LWH)	20811m	201011m	201212m

Your Trustworthy Partner

Leading manufacturer with over 20 years of experience.
Exported to 20+ countries with 300+ production lines running.
Advanced 5th Generation spunbond spinning technology.
One-stop project engineering solution from A to Z.
Reliable door-to-door engineering after-sale service.

Frequently Asked Questions (FAQ)

Q1: What raw materials are used in this machine? A1: The primary raw material is polypropylene (PP) granules, often mixed with color masterbatches or other additives depending on the desired fabric properties.

Q2: What is the GSM range of the fabric produced? A2: Our spunbond nonwoven machines can produce fabrics ranging from 10 GSM to 200 GSM.

Q3: How many operators are required for one production line? A3: Due to the high level of automation and simplified single-beam design, the line requires minimal personnel for operation and monitoring.

Q4: Is the machine customizable for specific widths? A4: Yes, we offer standard widths of 1600mm, 2400mm, and 3200mm, but custom configurations can be provided based on project requirements.

Q5: What kind of after-sales support do you provide? A5: We provide a comprehensive one-stop solution, including project engineering, on-site installation, and door-to-door maintenance services.

Q6: What makes the 5th generation spinning technology better? A6: It integrates advanced overseas design concepts with market autonomy, resulting in lower power consumption, higher efficiency, and better fabric uniformity.
