HG Nonwoven Macinery is one well-known non woven fabric machine manufacturer in China, which specializes in manufacturing all types of PP/PET/PLA spun bond and melt blown non woven fabric making machine such as S/SS/SSS/SMS/SMMS/SSMMS include turn-key project service.

Send Inquiry

Product Description

What is Non woven fabric making machine?

Spunbond nonwoven fabric making machine is a full production line of producing pp non-woven fabrics, which use polypropylene granules as raw material, adopts latest spunbond spinning technology to produce endless filaments.

The spunbond nonwoven machine is an integrated, continuous production line that transforms polymer granules like polypropylene directly into a fabric web. As the core equipment for manufacturing Spunbond Nonwoven Fabric (S), it is one of the most common types of nonwoven fabric making machines.

Single spinning head (S) nonwoven machine is characterized by its simplicity, cost-effectiveness, and high efficiency in producing a wide range of standard, single-layer spunbond nonwoven fabrics. It is the ideal solution for manufacturers targeting large-volume, price-sensitive markets where the functional requirements of the fabric can be met by a homogeneous structure.

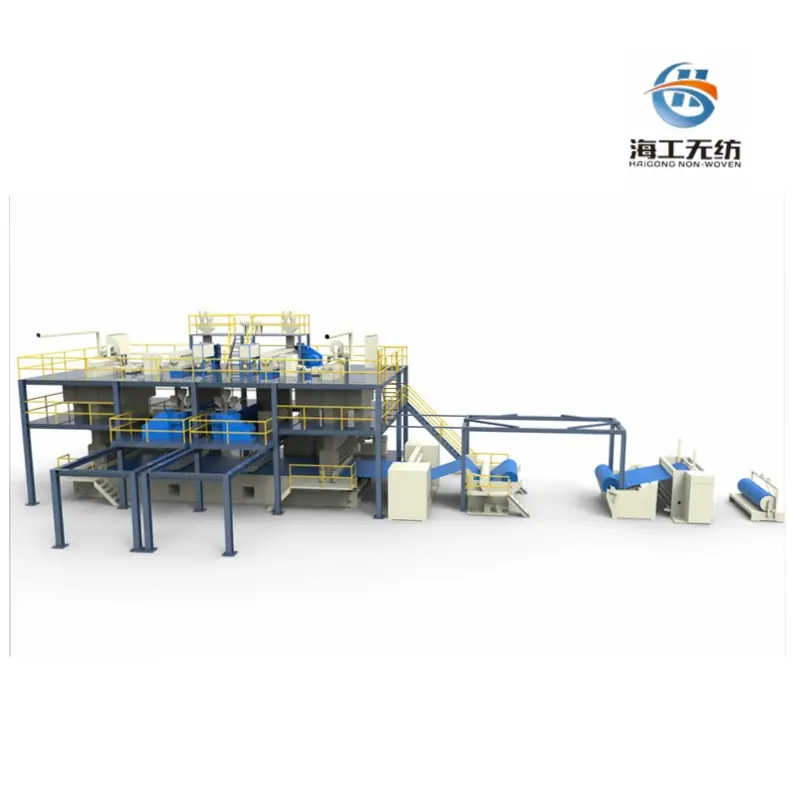

HG-1600S / 2400S / 3200S PP Spunbond Nonwoven Fabric Machine

Our spunbond nonwoven machine can produce the max width of 1600mm / 2400mm / 3200mm spunbond nonwoven fabric ranging from 10-200 GSM.

Typical Applications

🌾

Agriculture: Crop covers, weed control fabric, plant protection.

🏗️

Geotextiles: Soil stabilization, erosion control, drainage layers.

🛍️

Packaging: Wrapping, shopping bags, durable goods covers.

🛋️

Furniture & Bedding: Spring insulators, quilt backing, mattress.

🏠

Home Improvement: Housewrap, roofing base.

Key Characteristics of Spunbond Nonwoven Machine

Simplicity with lower Investment Risk: The machine layout is simpler and ideal for small to medium-sized enterprises.
Lower Capital Cost: Significantly cheaper to purchase and install, making it an ideal entry-point technology.
Easier Operation and Maintenance: Features a single spinning beam and drawing unit for simple control of parameters.
High Production Efficiency: Designed for continuous, high-speed production with excellent uptime.
Good Uniformity: Advanced spinning systems produce fabric with excellent CD and MD uniformity.

Integrated Production System Zones

1. Raw Material Feeding & Extrusion System

PP chips and additives are fed into the system and melted in the extruder using heated barrels and a rotating screw.

2. Melt Pump & Spinning Beam

The melt pump provides precise pressure to push molten polymer through the spinneret to form continuous filaments.

3. Filament Quenching & Drawing System

Cool air solidifies filaments, which are then stretched by high-speed air jets to increase strength.

4. Web Formation & Suction Unit

Filaments are randomly scattered onto a moving belt with a suction unit ensuring a uniform, random web structure.

5. Thermal Bonding (Calender bonding)

The web passes through heated steel rollers to fuse filaments at contact points, creating a strong, flat fabric.

6. Winding & Slitter

The finished fabric is wound into jumbo rolls, with inline slitters trimming edges to required widths.

Technical Specifications

(Custom configurations available upon request.)

Model	HG-1600S	HG-2400S	HG-3200S
Production capacity (kgs)	40,000kgs	60,000kgs	100,000kgs
Power Consumption(kW)	250kW	350kW	450kW
Machine Width(mm)	1600mm	2400mm	3200mm
Max. Production Speed	200m/min	200m/min	200m/min
Fabric Thickness (GSM)	10-200 g/m²	10-200 g/m²	10-200 g/m²
Dimension (LWH)	20811m	201011m	201212m

Your Trustworthy Partner

We enable our customers worldwide to produce nonwoven fabrics economically, reliably, and sustainably. We specialize in all types of PP/PET/PLA spunbond and meltblown machinery with 5th Generation technology.

Over 20 years of manufacturing experience.
Exported to 20+ countries with 300+ production lines.
One-stop project engineering solutions from A to Z.
2 years of free door-to-door engineering after-sale service.

Frequently Asked Questions (FAQ)

Q1: What raw materials are used in this machine? A: The machine primarily uses polypropylene (PP) granules, which can be mixed with additives like color masterbatch for specific requirements.

Q2: What is the range of fabric thickness (GSM) the machine can produce? A: The HG-S series can produce nonwoven fabrics with a weight ranging from 10 to 200 grams per square meter (GSM).

Q3: How many different widths are available for the S-series machines? A: We offer three standard widths: 1600mm, 2400mm, and 3200mm, though custom configurations can be discussed.

Q4: What are the main advantages of a single-beam (S) machine? A: It offers lower investment risk, lower capital cost, easier maintenance, and high efficiency for standard single-layer fabric production.

Q5: Does the production line include after-sales service? A: Yes, we provide 2 years of free door-to-door engineering after-sale service to ensure reliable operation.

Q6: What technology is utilized in the spinning process? A: Our machines utilize the advanced 5th Generation spunbond spinning technology for high performance and energy efficiency.
