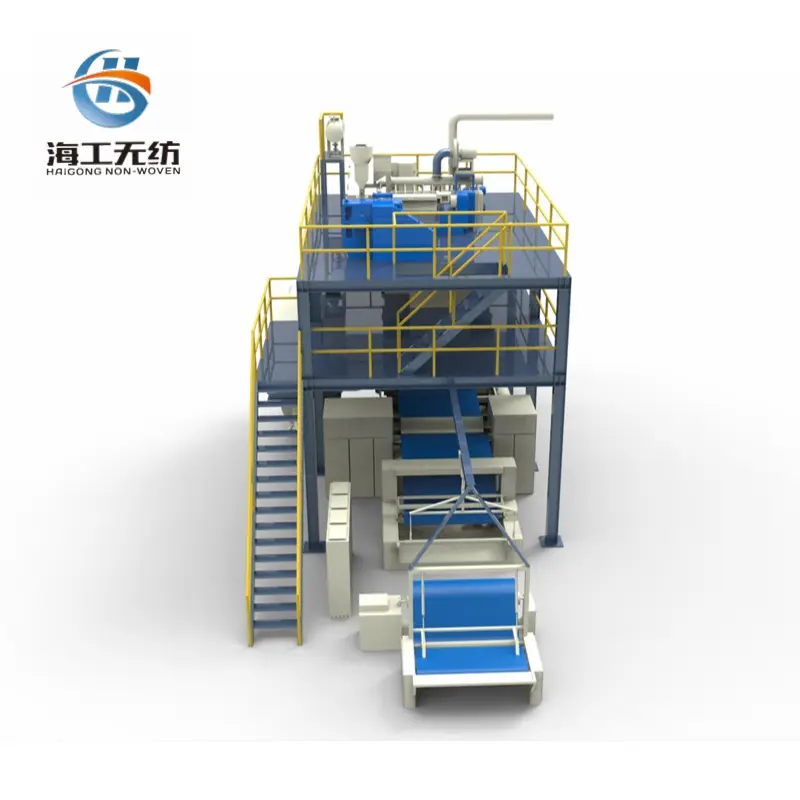

China Spunbond Non Woven Fabric Machine for High Efficiency Production Manufacturers, Supplier

1 / 3

China Spunbond Non Woven Fabric Machine for High Efficiency Production Manufacturers, Supplier

HG Nonwoven Macinery is one well-known non woven fabric machine manufacturer in China, which specializes in manufacturing all types of PP/PET/PLA spun bond and melt blown non woven fabric making machine such as S/SS/SSS/SMS/SMMS/SSMMS include turn-key project service.

Send Inquiry

Product Description

What is Non woven fabric making machine?

Spunbond nonwoven fabric making machine is a full production line of producing pp non-woven fabrics, which use polypropylene granules as raw material, adopts latest spunbond spinning technology to produce endless filaments.

The spunbond nonwoven machine is an integrated, continuous production line that transforms polymer granules like polypropylene directly into a fabric web. As the core equipment for manufacturing Spunbond Nonwoven Fabric (S), it is one of the most common types of nonwoven fabric making machines.

Single spinning head (S) nonwoven machine is characterized by its simplicity, cost-effectiveness, and high efficiency in producing a wide range of standard, single-layer spunbond nonwoven fabrics. It is the ideal solution for manufacturers targeting large-volume, price-sensitive markets.

PP Spunbond Nonwoven Fabric Machine Models

HG-1600S / 2400S / 3200S Series

These machines can produce a maximum width of 1600mm, 2400mm, or 3200mm spunbond nonwoven fabric ranging from 10-200 GSM.

Typical Applications

✓

Agriculture: Crop covers, weed control fabric, plant protection.

✓

Geotextiles: Soil stabilization, erosion control, drainage layers.

✓

Packaging: Wrapping, shopping bags, durable goods covers.

✓

Furniture & Bedding: Spring insulators, quilt backing, mattress.

✓

Home Improvement: Housewrap, roofing base.

Key Characteristics of Spunbond Nonwoven Machine

Simplicity with lower Investment Risk: Ideal for small to medium-sized enterprises.

Lower Capital Cost: Entry-point technology for many manufacturers.

Easier Operation and Maintenance: Simple operational parameters with one spinning beam.

High Production Efficiency: Designed for continuous, high-speed production and uptime.

Good Uniformity: Excellent cross-direction (CD) and machine-direction (MD) uniformity.

Core Production Zones

1. Raw Material feeding & Extrusion System: PP chips & additives are melted in the extruder using heated barrels and a rotating screw.

2. Melt Pump & Spinning Beam: Ensures consistent filament thickness by pushing molten polymer through a spinneret plate.

3. Filament Quenching & Drawing System: Cool air solidifies filaments, which are then stretched by high-speed air jets to increase strength.

4. Web Formation & Suction Unit: Filaments are randomly scattered onto a moving belt to create a uniform web.

5. Thermal Bonding (Calender bonding): Heated rollers fuse filaments together at contact points to form the final fabric.

6. Winding & Slitter: Finished fabric is wound into rolls and trimmed or slit to required widths.

Technical Specifications

Model	HG-1600S	HG-2400S	HG-3200S
Production capacity (kgs)	40,000kgs	60,000kgs	100,000kgs
Power Consumption(kW)	250kW	350kW	450kW
Machine Width(mm)	1600mm	2400mm	3200mm
Max. Production Speed	200m/min	200m/min	200m/min
Fabric Thickness (GSM)	10-200g/m²	10-200g/m²	10-200g/m²
Dimension (LWH)	20811m	201011m	201212m

Commitment to Quality

With over 20 years of experience and more than 300 production lines worldwide, we provide:

★
Economical, reliable, and sustainable production solutions.
★
Nonwoven market analysis and feasibility reports.
★
One-stop project engineering solutions from A to Z.
★
Advanced 5th Generation spunbond spinning technology.

Frequently Asked Questions

What raw materials are used in this machine?

The machine primarily uses Polypropylene (PP) granules. Additives like color masterbatch can also be added for specific requirements.

What is the range of fabric thickness (GSM) produced?

Our Spunbond machines can produce nonwoven fabrics ranging from 10 to 200 grams per square meter (GSM).

What are the available machine widths?

Standard models include HG-1600S (1600mm), HG-2400S (2400mm), and HG-3200S (3200mm). Custom configurations are available upon request.

What is the maximum production speed of the "S" series?

The "S" series single spinning head machine is designed for a maximum production speed of approximately 200 meters per minute.

Is this machine suitable for beginners in the nonwoven industry?

Yes, the single spinning head (S) machine is characterized by its simplicity and lower capital cost, making it the ideal entry-point technology for new manufacturers.

How is the fabric bonded in this process?

The machine uses thermal bonding (calender bonding) where the web passes through heated steel rollers to fuse the filaments together.
