China Polypropylene Spunbonded Nonwoven Manufacturing Machine Line with Turnkey Service Supplier, Factory

HG Nonwoven Macinery is one well-known non woven fabric machine manufacturer in China, which specializes in manufacturing all types of PP/PET/PLA spun bond and melt blown non woven fabric making machine such as S/SS/SSS/SMS/SMMS/SSMMS include turn-key project service.

Send Inquiry

Product Description

What is Non woven fabric making machine?

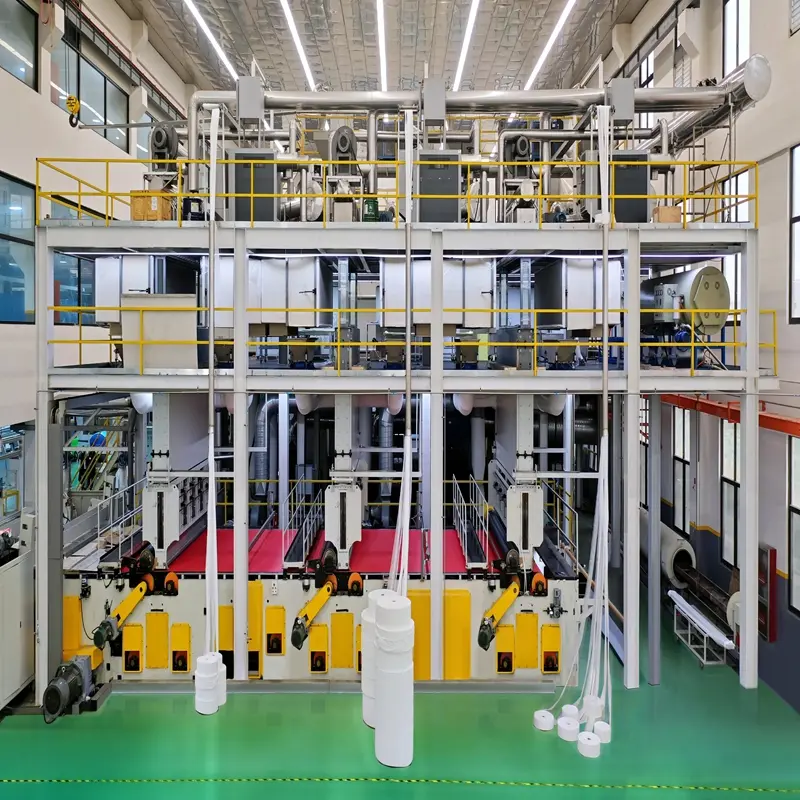

Spunbond nonwoven fabric making machine is a full production line of producing PP non-woven fabrics, which use polypropylene granules as raw material, adopts latest spunbond spinning technology to produce endless filaments.

The spunbond nonwoven machine is an integrated, continuous production line that transforms polymer granules like polypropylene directly into a fabric web. As the core equipment for manufacturing Spunbond Nonwoven Fabric (S), it is one of the most common types of nonwoven fabric making machines.

Single spinning head (S) nonwoven machine is characterized by its simplicity, cost-effectiveness, and high efficiency in producing a wide range of standard, single-layer spunbond nonwoven fabrics. It is the ideal solution for manufacturers targeting large-volume, price-sensitive markets where the functional requirements of the fabric can be met by a homogeneous structure.

★1600S / 2400S / 3200S PP Spunbond Nonwoven Fabric Machine

This series can produce the max width of 1600mm/2400mm/3200mm spunbond nonwoven fabric ranging from 10-200GSM.

✔Typical Applications

● Agriculture: Crop covers, weed control fabric, plant protection.
● Geotextiles: Soil stabilization, erosion control, drainage layers.
● Packaging: Wrapping, shopping bags, durable goods covers.
● Furniture & Bedding: Spring insulators, quilt backing, mattress.
● Home Improvement: Housewrap, roofing base.

Key Characteristics of Spunbond Nonwoven Machine

1. Simplicity with lower Investment Risk: Ideal for small to medium-sized enterprises.
2. Lower Capital Cost: Entry-point technology for many manufacturers.
3. Easier Operation and Maintenance: Simpler control parameters with one spinning beam.
4. High Production Efficiency: Designed for continuous, high-speed production.
5. Good Uniformity: Excellent cross-direction (CD) and machine-direction (MD) uniformity.

Integrated System Zones

1. Raw Material Feeding & Extrusion System: PP chips & Additives (color masterbatch) are melted in the extruder using heated barrels and a rotating screw.

2. Melt Pump & Spinning Beam: Ensures consistent filament thickness through precise pressure and fine spinneret holes.

3. Filament Quenching & Drawing System: Cool air solidifies filaments, which are then stretched by high-speed air jets for strength.

4. Web Formation & Suction Unit: Filaments are randomly scattered onto a moving belt to ensure isotropic strength.

5. Thermal Bonding (Calender bonding): Heated rollers fuse filaments together into a strong, flat fabric.

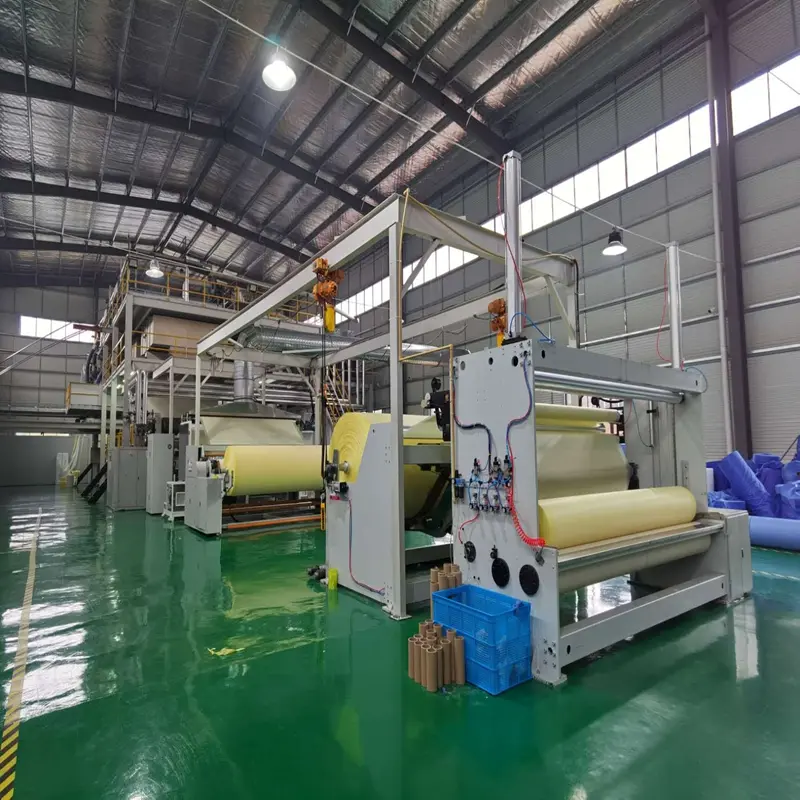

6. Winding & Slitter: Finished fabric is wound into jumbo rolls and trimmed to required widths.

Technical Specifications

(Custom configurations available upon request.)

Model	HG-1600S	HG-2400S	HG-3200S
Production capacity (kgs)	40,000kgs	60,000kgs	100,000kgs
Power Consumption (kW)	250kW	350kW	450kW
Machine Width (mm)	1600mm	2400mm	3200mm
Max. Production Speed	200m/min	200m/min	200m/min
Thickness (GSM)	10-200g/m²	10-200g/m²	10-200g/m²
Dimensions (LWH)	20811m	201011m	201212m

Your Trustworthy Partner

Providing leading nonwoven fabric making machines for over 20 years. Exporting to 20+ countries with over 300+ reliable production lines in operation.

📊 Support nonwoven market analysis and feasibility reports.
🛠 One-stop project engineering solutions from A to Z.
✈ 2 years of free door-to-door engineering after-sale service.

Frequently Asked Questions

Q1: What raw materials are used in the spunbond process?

The machine primarily uses Polypropylene (PP) granules, which can be mixed with additives like color masterbatch to produce colored fabrics.

Q2: What is the thickness range of the fabric produced?

The machines can produce nonwoven fabrics with a weight/thickness ranging from 10 to 200 grams per square meter (GSM).

Q3: What are the main differences between the HG-1600S, 2400S, and 3200S models?

The main differences lie in the machine width (1600mm to 3200mm) and the total production capacity, ranging from 40,000kgs up to 100,000kgs depending on the model.

Q4: How does the thermal bonding process work?

The fiber web passes through heated steel rollers (calenders) where heat and pressure cause the filaments to fuse at specific contact points, creating a strong and stable fabric.

Q5: What technical support is provided after installation?

We offer a one-stop project solution and provide up to 2 years of free door-to-door engineering after-sale service to ensure high production uptime.

Q6: Are these machines suitable for sustainable production?

Yes, the 5th generation spinning technology is designed for low power consumption and high efficiency, supporting the production of eco-friendly nonwoven materials.
