What is Non woven fabric making machine?
The Spunbond nonwoven fabric manufacturing machine is a full production line that produces endless filaments using the latest spunbond spinning technology and polypropylene granules as the raw material. The primary equipment used in the production of Spunbond Nonwoven Fabric (S), one of the most widely used types of nonwoven fabric manufacturing devices, is the spunbond nonwoven machine, a continuous, integrated production line that produces a fabric web directly from polymer granules, such as polypropylene.

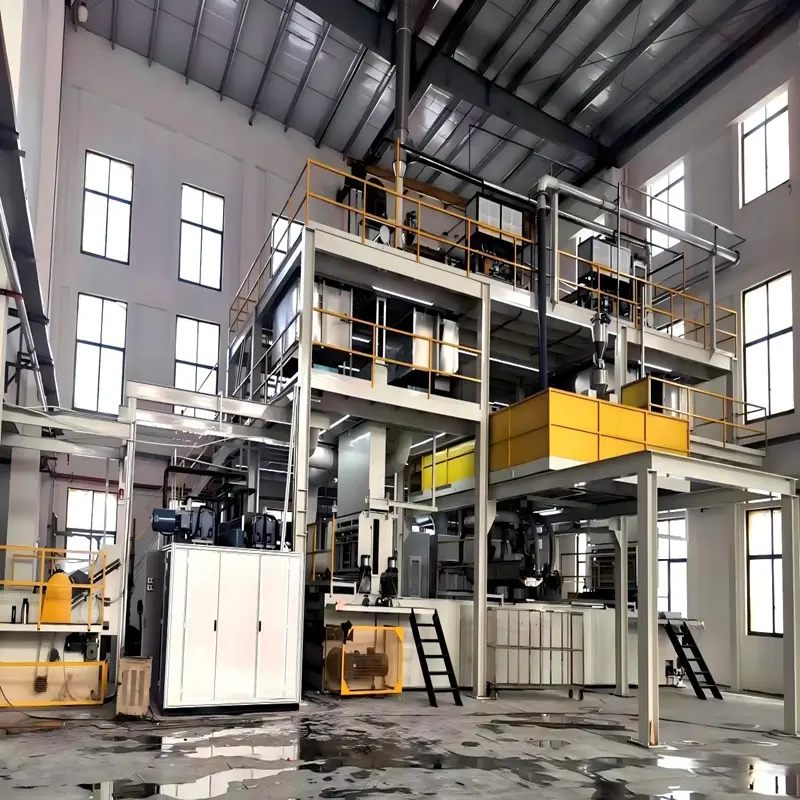

HG-1600S/2400S/3200S PP Spunbond Nonwoven Fabric Machine
This machine can produce the max width of 1600mm/2400mm/3200mm spunbond nonwoven fabric 10-200GSM.
Typical Applications:
- Medical & Hygiene: Surgical gowns, masks, drapes, bed sheets, sterile packaging, baby diapers, and adult incontinence pads.
- Agriculture & Gardening: Crop covers, weed control fabrics, plant protection sheets, soil stabilization mats, and landscape fabrics.
- Packaging & Industrial: Shopping bags, protective wrapping, durable packaging, furniture backing, and industrial wipes.
Machine Operational Zones
A typical spunbond machine is a long, integrated system with the following key zones:
- Raw Material feeding & Extrusion: PP chips & Additives are melted in the extruder using heated barrels and a rotating screw.
- Melt Pump & Spinning Beam: Ensures consistent filament thickness through precise pressure and spinneret fine holes.
- Filament Quenching & Drawing: Solidifies filaments via cool air and stretches them with high-speed air jets for strength.
- Web Formation & Suction: Randomly scatters filaments onto a forming belt to ensure isotropic strength.
- Thermal Bonding: Heated steel rollers fuse filaments into a strong, flat fabric.
- Winding & Slitter: Automatically winds fabric into jumbo rolls with optional edge trimming.
Technical Specifications
| Parameter |
HG-1600S |
HG-2400S |
HG-3200S |
| Production capacity |
40,000kgs |
60,000kgs |
100,000kgs |
| Power Consumption |
250kW |
350kW |
450kW |
| Machine Width |
1600mm |
2400mm |
3200mm |
| Max. Speed |
200m/min |
200m/min |
200m/min |
Why Choose Us
We are a leading nonwoven fabric making machine manufacturer with over 20 years of experience, exporting to 20+ countries with 300+ successful production lines.
- One-stop turn-key project engineering solution from A to Z.
- Support for nonwoven market analysis and feasibility reporting.
- Advanced 5th Generation spunbond spinning technology.
- High efficiency, low power consumption, and low production cost designs.
- 2 years of free door-to-door engineering after-sale service.
Frequently Asked Questions
What raw materials are required for the machine?
The machine primarily uses polypropylene (PP) granules as the raw material, along with necessary additives like color masterbatches.
What is the production capacity of these machines?
Capacity varies by model, ranging from 40,000kgs to 100,000kgs, depending on the specific configuration and machine width (1600mm to 3200mm).
Does the machine support custom configurations?
Yes, custom configurations are available upon request to meet specific production needs and facility dimensions.
Is the machine suitable for medical grade fabric production?
Absolutely. Our machines are capable of producing high-quality nonwoven fabrics suitable for medical applications, including surgical gowns, masks, and sterile packaging.
What kind of after-sales support do you provide?
We provide comprehensive support, including a 2-year free door-to-door engineering service and one-stop turn-key project solutions.
Can the machine produce different GSM weights?
Yes, the machines are versatile and can produce nonwoven fabric with thicknesses ranging from 10 to 200 GSM.
