Spunbond nonwoven fabric making machine is a full production line of producing PP non-woven fabrics, which uses polypropylene granules as raw material and adopts the latest spunbond spinning technology to produce endless filaments.

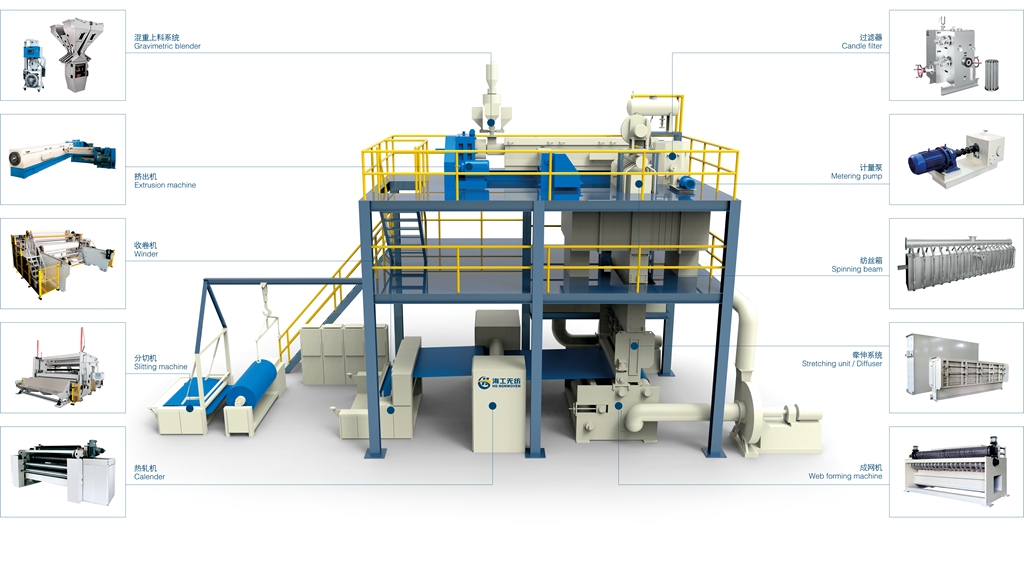

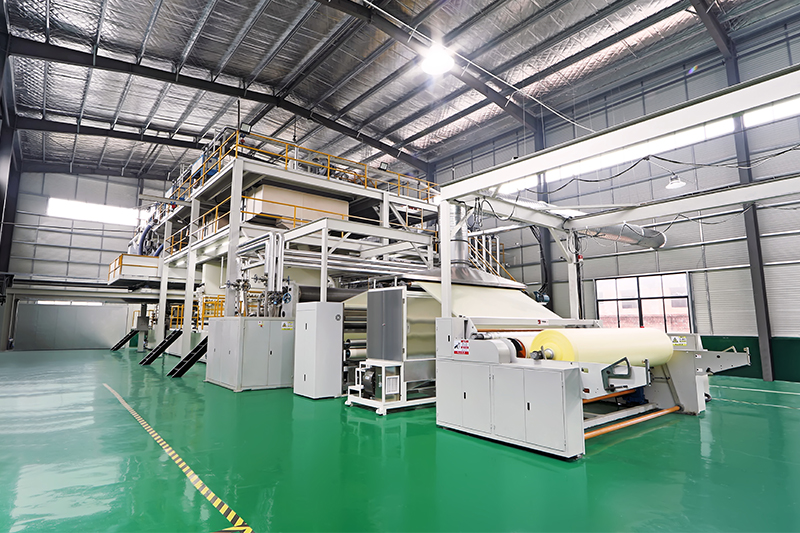

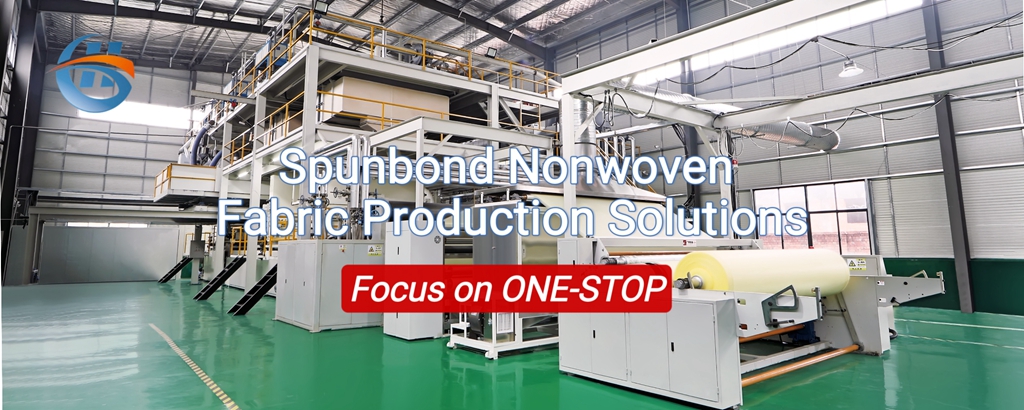

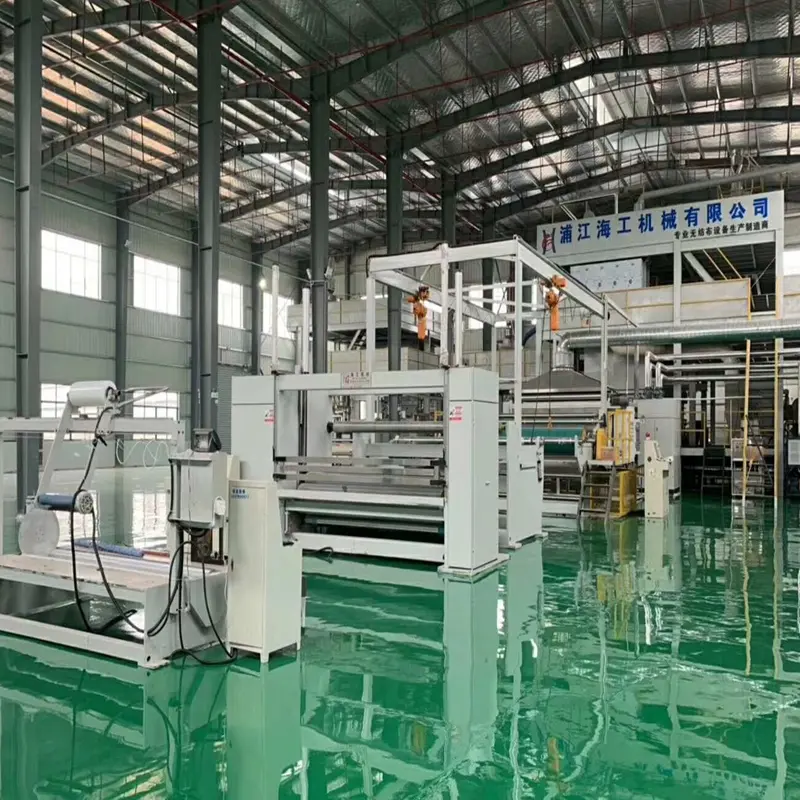

The spunbond nonwoven machine is an integrated, continuous production line that transforms polymer granules like polypropylene directly into a fabric web. It serves as the core equipment for manufacturing Spunbond Nonwoven Fabric (S), which is one of the most common types of nonwoven fabric making machines.
The single spinning head (S) nonwoven machine is characterized by its simplicity, cost-effectiveness, and high efficiency in producing a wide range of standard, single-layer spunbond nonwoven fabrics. It is the ideal solution for manufacturers targeting large-volume, price-sensitive markets where the functional requirements of the fabric can be met by a homogeneous structure.
The production machine line can produce nonwoven fabrics with a maximum width of 1600mm / 2400mm / 3200mm, with weights ranging from 10 to 200 GSM.

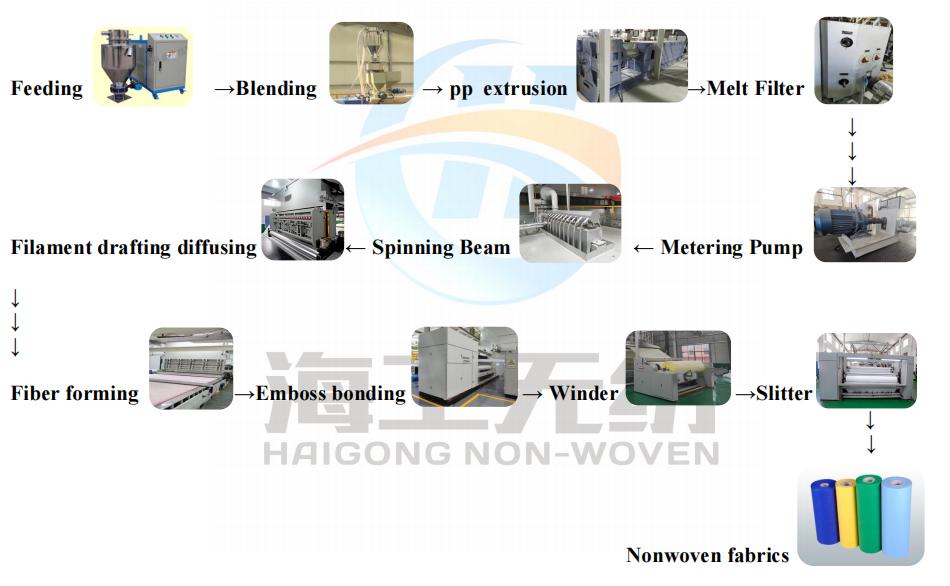

PP chips and additives (such as color masterbatch) are fed into the system. They are melted in the extruder using heated barrels and a rotating screw.
The melt pump provides precise, constant pressure to push the molten polymer forward, ensuring consistent filament thickness. The molten polymer is forced through the spinneret—a metal plate with numerous fine holes, forming continuous molten polymer filaments.
As the filaments exit the spinneret, cool air is blown across them in the quenching chamber to solidify them. The solidified filaments are then stretched (drawn) by high-speed air jets in the air drafter. This step is critical as it aligns the polymer molecules, increasing filament strength and reducing its diameter.
The high-velocity air from the drafter carries the filaments and randomly scatters them onto a moving, perforated forming belt. A suction unit underneath the belt pulls the air through, helping the filaments to lie down in a uniform, random web. This randomness ensures isotropic strength (similar strength in all directions).
The web passes through heated steel rollers (calenders), where one or both rollers are engraved with a pattern. Under heat and pressure, the filaments fuse together at these contact points, producing a thin, strong, and relatively flat spunbond nonwoven fabric.
The finished fabric is automatically wound into large jumbo rolls. An inline slitter trims the edges and can slit the wide web into narrower rolls as required by the customer.
Your Trustworthy Partner in Spunbond Nonwoven Machines
We enable our customers worldwide to produce nonwoven fabrics economically, reliably, and sustainably.
(Custom configurations available upon request.)
| Model | Model 1600S | Model 2400S | Model 3200S |
|---|---|---|---|
| Production capacity (kgs) | 40,000kgs | 60,000kgs | 100,000kgs |
| Power Consumption(kW) | 250kW | 350kW | 450kW |
| Machine Width(mm) | 1600mm | 2400mm | 3200mm |
| Max. Production Speed (m/min) | 200m | 200m | 200m |
| Nonwoven fabric Thickness(GSM) | 10-200grams/sq.m | 10-200grams/sq.m | 10-200grams/sq.m |
| Production line dimension(L*W*H) | 20*8*11m | 20*10*11m | 20*12*12m |
Leading Nonwoven Fabric Making Machine Manufacturer for Over 20 Years
We specialize in manufacturing all types of PP/PET/PLA spunbond and meltblown nonwoven fabric making machines, including S/SS/SSS/SMS/SMMS/SSMMS configurations. Our turn-key project engineering focuses on producing high-performance, eco-friendly, and biodegradable nonwoven fabric materials.
With more than 300+ nonwoven fabric production lines operating globally, we have successfully exported machinery to over 20 countries and regions. Our technical designs integrate advanced overseas concepts, featuring the 5th Generation spunbond spinning technology, customized to target specific market requirements. Consequently, the production lines are characterized by convenient operation, compact layouts, low power consumption, high efficiency, and minimized production costs.
