What is Non woven fabric making machine?
Spunbond nonwoven fabric making machine is a full production line of producing pp non-woven fabrics, which use polypropylene granules as raw material, adopts latest spunbond spinning technology to produce endless filaments.
The spunbond nonwoven machine is an integrated, continuous production line that transforms polymer granules like polypropylene directly into a fabric web. As the core equipment for manufacturing Spunbond Nonwoven Fabric (S), which is one of the most common types of nonwoven fabric making machines.
Single spinning head (S) nonwoven machine is characterized by its simplicity, cost-effectiveness, and high efficiency in producing a wide range of standard, single-layer spunbond nonwoven fabrics. It is the ideal solution for manufacturers targeting large-volume, price-sensitive markets where the functional requirements of the fabric can be met by a homogeneous structure.

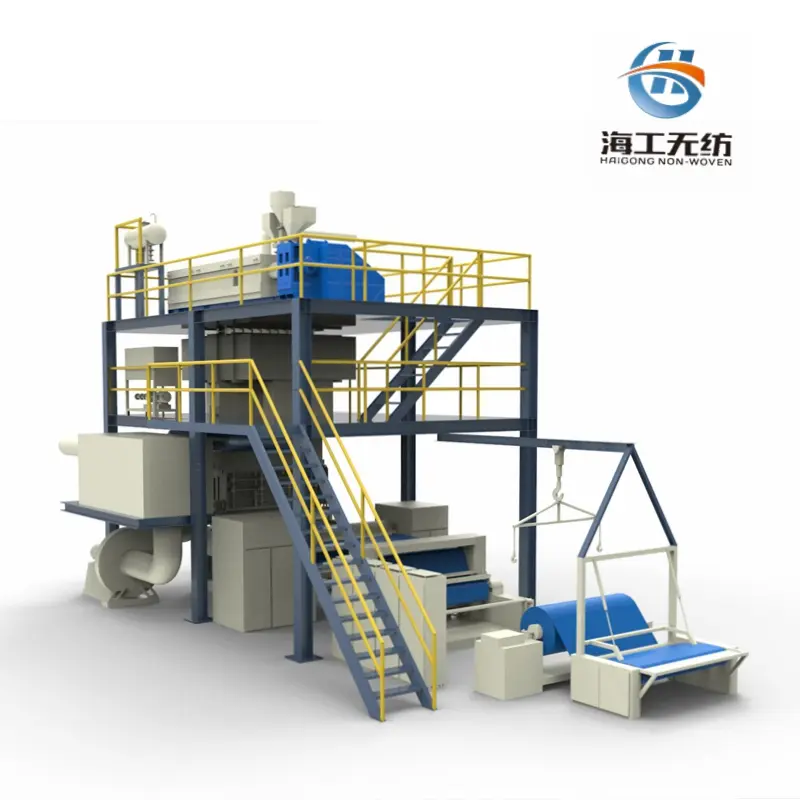

HG-1600S/2400S/3200S PP Spunbond Nonwoven Fabric Machine
HG-1600S/2400S/3200S spunbond nonwoven machine can produce the max width of 1600mm/2400mm/3200mm spunbond nonwoven fabric 10-200GSM.
Typical Applications
Agriculture: Crop covers, weed control fabric, plant protection.
Geotextiles: Soil stabilization, erosion control, drainage layers.
Packaging: Wrapping, shopping bags, durable goods covers.
Furniture & Bedding: Spring insulators, quilt backing, mattress.
Home Improvement: Housewrap, roofing base.
Key Characteristics of Spunbond Nonwoven Machine
🚀 Simplicity with lower Investment Risk: The machine layout is simpler and Ideal for small to medium-sized enterprises.
💰 Lower Capital Cost: Significantly cheaper to purchase and install. This makes it the entry-point technology for many manufacturers.
🛠️ Easier Operation and Maintenance: With only one spinning beam and drawing unit, the operational parameters are simpler to control.
📈 High Production Efficiency: Its designed for continuous, high-speed production, leading to high output and excellent uptime.
✨ Good Uniformity: Advanced Spinning systems can produce fabric with excellent cross-direction (CD) and machine-direction (MD) uniformity.
Integrated System Zones
1. Raw Material feeding & Extrusion System: PP chips & Additives (color masterbatch) are fed into the system and melted in the extruder.
2. Melt Pump & Spinning Beam: Precise pressure ensures consistent filament thickness as polymer is forced through the spinneret.
3. Filament Quenching & Drawing System: Cool air solidifies filaments, which are then stretched by high-speed air jets to increase strength.
4. Web Formation & Suction Unit: Filaments are randomly scattered onto a forming belt to create isotropic strength.
5. Thermal Bonding (Calender bonding): Heated steel rollers fuse filaments at contact points for a strong, flat fabric.
6. Winding & Slitter: Finished fabric is wound into jumbo rolls and trimmed or slit to required widths.
Why Choose Us
Your Trustworthy Partner in Spunbond Nonwoven Machines
✅ Economical, reliable and sustainable production worldwide.
✅ Nonwoven market analysis and feasibility report support.
✅ One-stop project engineering solution from A to Z.
✅ 2 years of free door to door engineering after-sale service.
Technical Specifications
*(Custom configurations available upon request.)
| Model |
HG-1600S |
HG-2400S |
HG-3200S |
| Production capacity (kgs) |
40,000kgs |
60,000kgs |
100,000kgs |
| Power Consumption (kW) |
250kW |
350kW |
450kW |
| Machine Width (mm) |
1600mm |
2400mm |
3200mm |
| Max. Production Speed (m/min) |
200m |
200m |
200m |
| Thickness (GSM) |
10-200g/m² |
10-200g/m² |
10-200g/m² |
| Dimension (L*W*H) |
20*8*11m |
20*10*11m |
20*12*12m |
Professional Manufacturing Experience
A leading nonwoven fabric making machine manufacturer with over 20 years of experience. We export to 20+ countries, offering 300+ reliable nonwoven fabric production lines.
Specializing in all types of PP/PET/PLA spun bond and melt blown non woven fabric making machines such as S/SS/SSS/SMS/SMMS/SSMMS including turn-key project services. Our machines focus on producing high performance, eco-friendly and biodegradable materials.
Utilizing advanced 5th Generation spunbond spinning technology, our machines are characterized by convenient operation, small footprint, low power consumption, and high efficiency.
Frequently Asked Questions (FAQ)
1. What raw materials are used in these machines?
The machine primarily uses polypropylene (PP) granules. It can also handle additives like color masterbatch to produce fabric in various colors.
2. What is the range of fabric thickness (GSM) the machine can produce?
The HG-S series models are capable of producing nonwoven fabrics with a weight range between 10 to 200 grams per square meter (GSM).
3. What are the available production widths?
We offer three standard models with maximum fabric widths of 1600mm, 2400mm, and 3200mm to suit different market requirements.
4. What is the benefit of the random web formation process?
Random web formation is key to achieving isotropic strength, meaning the fabric has similar tensile strength in both the machine direction (MD) and cross direction (CD).
5. Do you provide after-sale engineering support?
Yes, we provide a comprehensive one-stop project engineering solution and offer 2 years of free door-to-door engineering after-sale service.
6. Is the 5th Generation technology more efficient?
Yes, the 5th Generation spunbond spinning technology integrates advanced overseas design concepts to ensure lower power consumption, higher efficiency, and easier operation.
