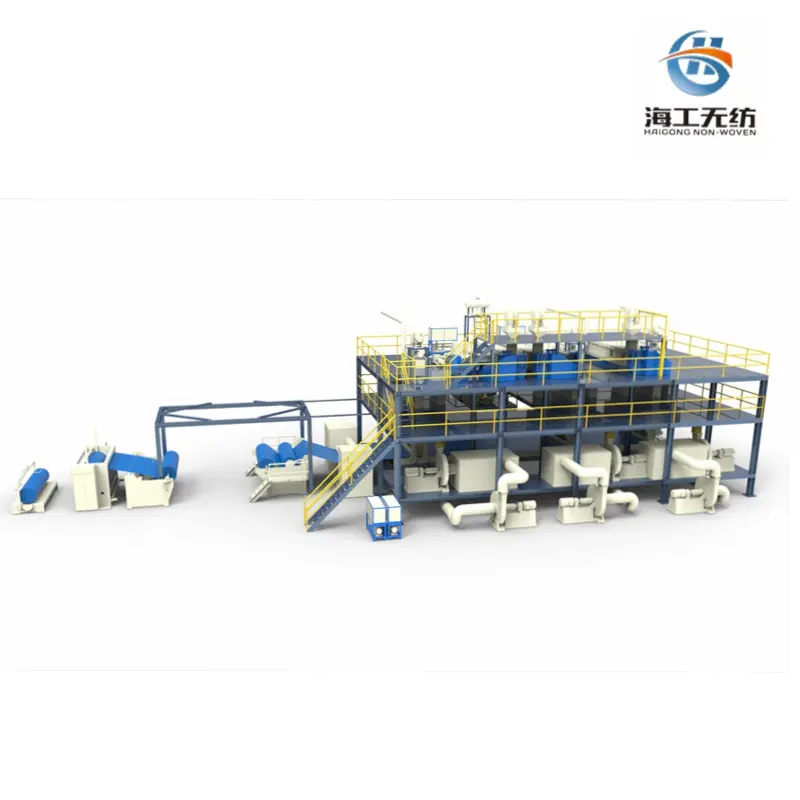

China SMS Medical Nonwoven Fabric Making Machine Manufacturer, Factory

SMS composite nonwoven fabric is made of spunbond nonwoven fabric+melt-blown nonwoven fabric+ spunbond non-woven fabric through three layers of fiber combined.The production line adopts one-step SMS spunbond and melt-blown composite nonwoven fabric production process and technology.The nonwoven fabric is widely used in medical surgical clothing,adult mattresses and other disposable medical protection and personal health care.

Send Inquiry

Product Technical Specifications

Model	Effective width	Daily capacity	Speed	Spinning system	GSM Range	Machine Dimension (LWH)
HG-1600SMS	1600MM	10000Kg	400M/Min	Spunbond/ Meltblown/ Spunbond	8-80	401511 meter
HG-2400SMS	2400MM	14000Kg				401811 meter
HG-3200SMS	3200MM	18000Kg				402511 meter

Main Production Process

Involves the extrusion of polymer through spinnerets to form continuous filaments, which are laid randomly and bonded by heat.

Polymer is melted and extruded through fine nozzles to form microfibers, which are collected and bonded by heat.

The bonding of spunbond and meltblown layers using a calender machine with simultaneous heat and pressure.

The finished fabric is wound onto rolls for further processing as per requirements.

Global Track Record

20+

Countries and regions reached by our advanced fabric making machinery, establishing a strong international reputation.

300+

Successfully installed production lines worldwide with a consistent and high growth rate annually.

Frequently Asked Questions

What is the spinning system used in these machines?

The machines utilize a combined Spunbond / Meltblown / Spunbond (SMS) system for high-quality fabric production.

What is the maximum production speed?

The equipment is designed to operate at a high speed of up to 400 meters per minute.

What is the range of fabric weight (GSM) that can be produced?

The machines can produce nonwoven fabrics within a GSM range of 8 to 80.

What are the available machine widths?

We offer effective widths of 1600mm, 2400mm, and 3200mm to suit different production needs.

What is the daily capacity of the HG-3200SMS model?

The HG-3200SMS model has a high daily production capacity of approximately 18,000 Kg.

How is the bonding of different layers achieved?

The bonding process uses a calender machine that applies heat and pressure simultaneously to fuse the spunbond and meltblown layers.
